Privacy Beams for Screens & Enclosures

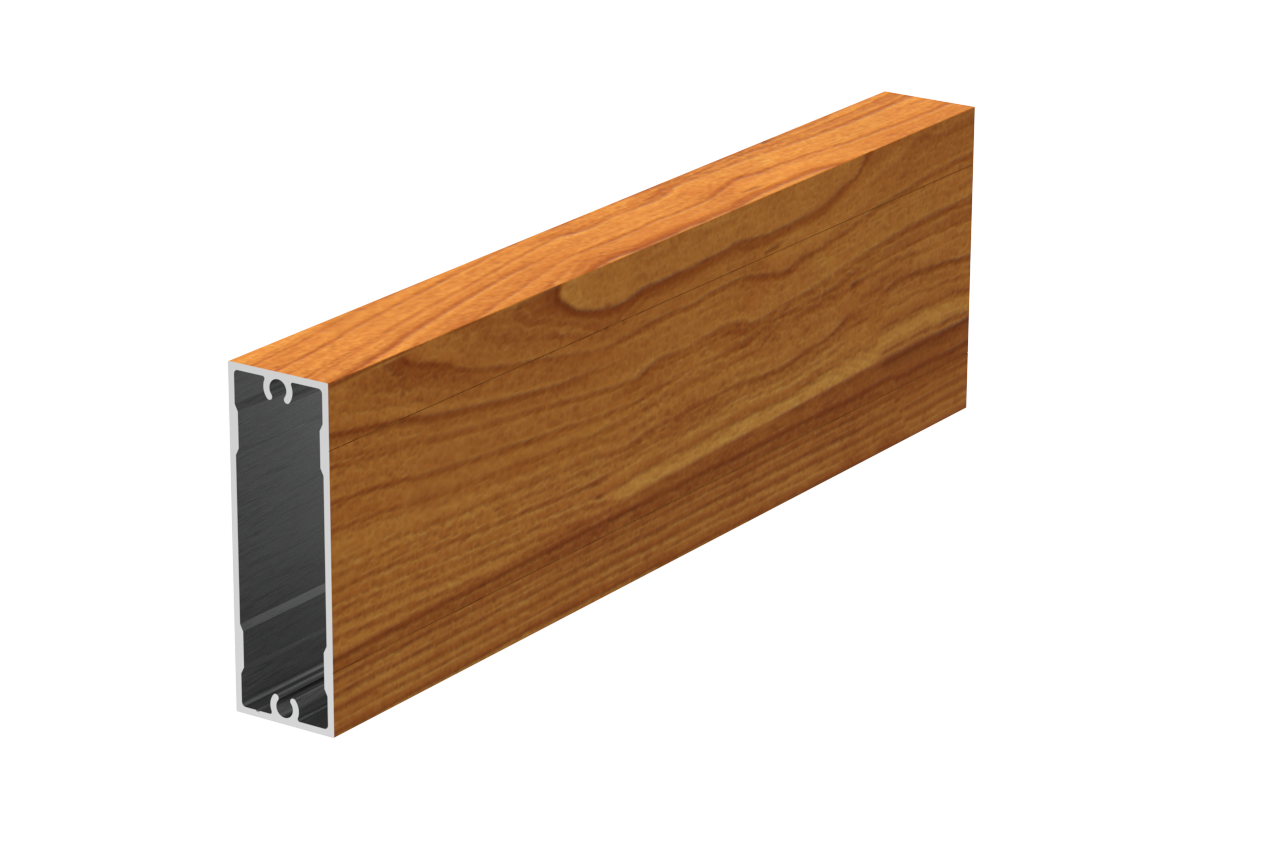

Privacy beams are available in 1×5 or 1×3 size at 24ft length with thickenings in the side wall to hold mechanical fasteners and come in a wide variety of wood grain, solid colour, and specialty finish options. They are designed to accept matching Longboard end caps where needed to create a finished look.
When used as a floating system, single posts are designed to be installed behind the beams anchoring the system to the structure providing a continuous look. The end frame system is designed as a dual-sided application utilizing double posts as intermediate supports with single posts at corners and termination points.
Finishes
New Woodgrain Finishes - Samples Available Now
Woodgrains
Dark Acacia
DAC
Dark Bamboo
DBB
Light Bamboo
LBB
Beechwood
BEE
Birchwood
BWD
Burnt Cherry
BCY
Dark Cherry
DCY
Light Cherry
LCY
Solid Colors
Black
BLA
Bone White
BWH
Brick Red
BRD
Charcoal
CHA
Chili Pepper
CHP
Dark Brown
DBR
Graphite
GRA
Medium Blue
MBL
Specialty
Anodic Ice
AIC
Platinum Ice
PIC
Venus
VEN
Biscotti
BIS
Burnt Sienna
BSN
Canyon Vista
CVI
Ceramic Clay
CCL
Copper Penny
CPE
Moonstone
MOO
Old Navy
ONA
Naturally Aged Metals
Your screen, and our pictures do not accurately reflect aspects of our finishes – textures, shine, woodgrain hues, etc. Always order for a sample before purchase!
Lead times vary according to Finish and Square Footage (Sqft). Contact us to discuss your project goals and time lines.
Longboard® is Innovative Sustainable Quality Visually Stunning
Ease of Install
Our thorough and detailed installation guides offer simple to follow steps to increase efficiency and reduce time on the job site.
The sample images below are illustrative of some of the steps outlined in our documentation.
Technical Specifications
Code Compliance
- ICC ESR 4183
- LADBS – Los Angeles Department of Building and Safety
Combustibility
- ASTM E136 – Behavior of Materials in a Vertical Tube Furnace
- CAN/ULC S114 (CANADA) – Non-Combustibility (weight loss)
- EN 13501 (UK/EU) – Combustibility Classification
- EN ISO 1716 (UK/EU) – Heat of combustion (calorific loss)
Flame Spread & Smoke Development
- ASTM E84 – Flame Spread & Smoke Development
- ASTM E2768 – Flame Spread & Smoke Development
- UL 723 (USA) – Flame Spread & Smoke Development
- CAN/ULC S102 (CANADA) – Flame Spread & Smoke Development
Light Reflectance
- ASTM E1477 – LRV (light reflectance value)
Environmental
- LEED – Evaluates a building’s environmental performance
- EPD – Life-cycle environmental impact of products
All Longboard systems are available using our Longboard ECO™ line of sustainable aluminum materials. Longboard ECO™ products are made from minimum 50% recycled aluminum and possess verified life cycle impact assessment (LCIA) and product-specific environmental product declarations (EPD).
Product Components
Beams
| Dimensions | Product | 24’ | End Caps (20/box) |
|---|---|---|---|
| 1x3” | Privacy Beam | 1X3B.289 | 1BEC.3 |
| 1x5” | Privacy Beam | 1X5B.289 | 1BEC.5 |
| 2x2” | Single Post | 2X2SP.289 | 2X2PC.2 |
| 2x3” | Double Post | 2X3DP.289 | 2X3PC.3 |
Mounting Accessories
| Product | Qty | SKU |
|---|---|---|
| 1x3” & 1x5” Spacer Block | 100, box | 2X2SB.N100 |
| 1x3” & 1x5” Spacer Bar | 1 | 1X2FB.145 |
| 1x3” Spacer Bar | 100, box | 1X2FB.1 |
| 1x5” Spacer Bar | 100, box | 1X2FB.3 |
| 3” Mounting Bracket | 100, box | 3PSMB.1 |
| #10 Screws | 100, box | PECS.N100 |
