Panelboard™ Wall Systems
The Panelboard system in many respects is identical to the Longboard tongue and groove plank wall system and use many of the same mounting accessories and component trims. The Panelboard system uses a combination of uniquely designed planks and component trims to create the impression of a solid large format panel. The fact that individual planks and components are used gives the designer and installer a lot more flexibility compared to other large format panel systems.
Easy to install, non-combustible, VOC free, and corrosion resistant, this system complements any interior building design. Installed using the supplied Longboard Quick Screen Clips, T&G cladding can be installed either vertically or horizontally onto any wall framing system as required. Manufactured in 12ft or 24 foot lengths they are easily fabricated whether in a pre-fab facility or in the field to suit your project’s conditions.
Why choose Panelboard™ instead of other panel products?
Product Description
High-grade extruded aluminum, hollow backed with a base metal thickness of 1.77mm. Panel sizes from 1ft to 24 ft.
Durability
High impact strength. Due to their light weight reduce structural requirements and subsequent costs.
End of Use Recyclability
100% recyclable, the extrusion doesn't contact any plastic elements.
Maintenance
Easy to maintain and cost effective field repairs. Dirt and debris can be easily rinsed and washed off with a mild detergent depending on frequency of build-up. No caulking or glue is required for the product.
Environmental Concern
Longboard can contain recycled aluminum. Production of aluminum billets sourced by Longboard uses hydro-electric power.
Rain-Screen
BV/D (Rear ventilated rain-screen), no need for caulking. Mechanical seals are used such as metal flashing and metal furring strips which are long-lasting.
Flatness
Extruded aluminum does no oil can and will demonstrate extraordinary flatness and rigidity when installed according to manufacture's instructions.
Ease of Installation
Regular cladding installers can quickly learn Panelboard™ installation techniques. The system is straight-forward in it's application and cutting panels can be done on-site. Typically one installer can apply 100 SF of coverage per day.
Finishes
Most Popular Finishes
(Ready to ship within 2 weeks for orders less than 15k sq.ft)
Woodgrains
Longboard's woodgrain finishes have a slight texture with a matte sheen.
Dark Bamboo
DBB
Light Bamboo
LBB
Dark Fir
DFR
Light Cherry
LCY
Light Fir
LFR
Rock Elm
REM
Blonde Oak
BOK
Beechwood
BEE
Birchwood
BWD
Solid & Specialty
Onyx Black
OBL
Textured Matte
Solid
Old Navy
ONA
Textured Matte
Solid
Textured Matte
Solid
Shale
SHA
Textured Matte
Solid
Smooth Satin
Solid
Dark Brown
DBR
Smooth Satin
Solid
Slate Grey
SGR
Smooth Satin
Solid
Venus
VEN
Smooth Satin
Metallic
Ultra White
UWH
Smooth Satin
Solid
Bone White
BWH
Smooth Satin
Solid
Additional Finishes
(Contact a Sales Rep for Lead Times)
Woodgrains
Longboard's woodgrain finishes have a slight texture with a matte sheen.
Solid & Specialty
Speckle
Brownstone
BST
Textured Matte
Speckle
Baked Clay
BCL
Textured Matte
Speckle
Burnt Sienna
BSN
Textured Matte
Speckle
Biscotti
BIS
Textured Matte
Speckle
Relicstone
RST
Textured Matte
Speckle
Limestone
LST
Textured Matte
Speckle
Bedrock
BRK
Textured Matte
Speckle
Pebble
PEB
Textured Matte
Speckle
Alabaster
ALB
Textured Matte
Speckle
Textured Matte
Speckle
Naturally Aged Metals
Liberty
LIB
Textured Matte
Naturally Aged Metals
Empire
EMP
Textured Matte
Naturally Aged Metals
Brooklyn
BRO
Smooth Glossy
Naturally Aged Metals
Eiffel
EIF
Textured Matte
Naturally Aged Metals
Golden Gate
GGA
Textured Matte
Naturally Aged Metals
Your screen, and our pictures do not accurately reflect aspects of our finishes – textures, sheen, woodgrain hues, etc. Always order a physical sample before purchase!
Contact us to confirm lead times for orders greater than 15k sq.ft in the Most Popular Finishes category.
Longboard Finish Classification
Type: Woodgrain / Solid / Metallic /
Speckle / Naturally Aged Metal
Surface: Smooth / Textured
Sheen: Matte / Satin / Glossy
Performance: AAMA 2604 / AAMA 2605
Finish Warranty: 15 Year / 20 Year
Longboard® is Innovative Sustainable Quality Visually Stunning
Ease of Install
Our thorough and detailed installation guides offer simple to follow steps to increase efficiency and reduce time on the job site.

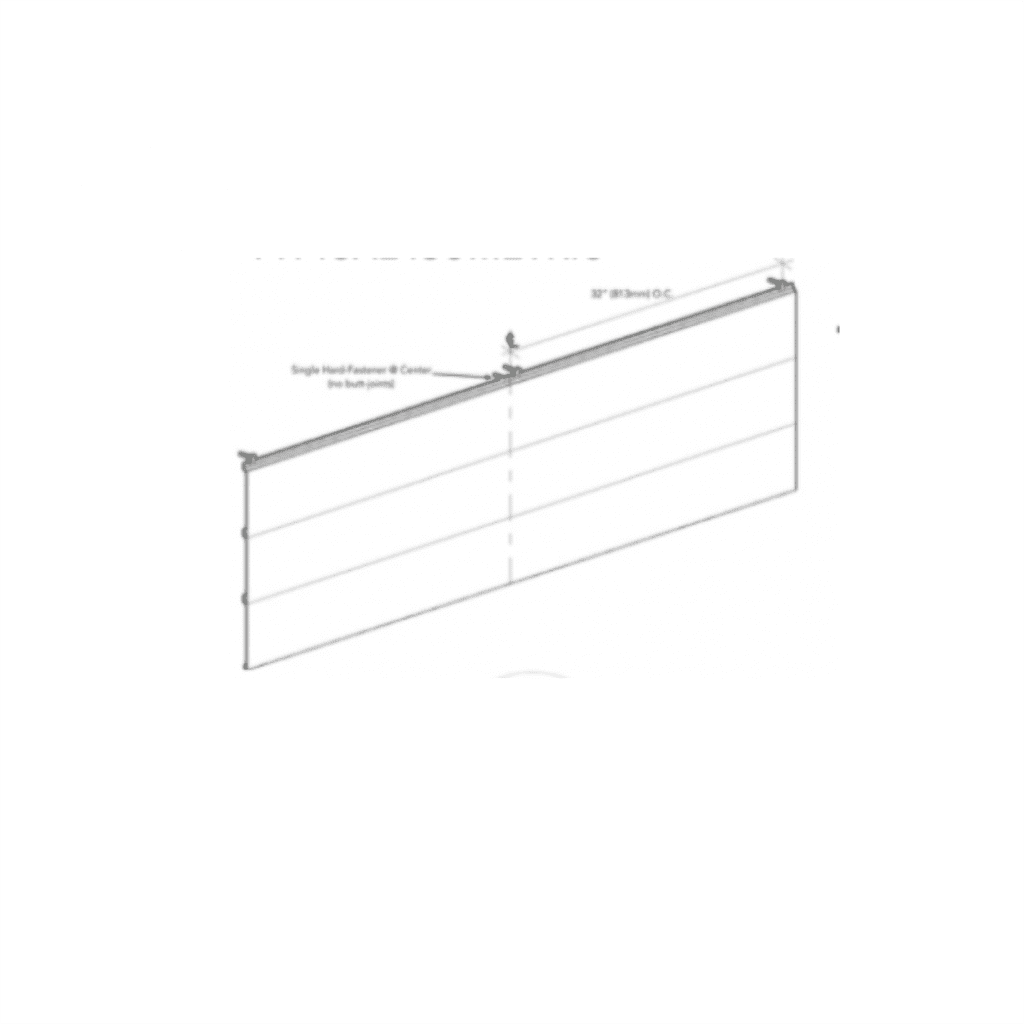

The sample images below are illustrative of some of the steps outlined in our documentation.
Perforation
We offer perforation options to offer designers freedom in achieving their desired look while also delivering practical uses.
These products meet the same quality and environmental benchmarks of our other products, including being VOC free, LBC red list free, 100% recyclable, and offering up to LR.73 light reflectance.
Technical Specifications
Code Compliance
- ICC ESR 4182
- LADBS – Los Angeles Department of Building and Safety
Light Reflectance
- ASTM E1477 – LRV (light reflectance value)Â
Combustibility
- ASTM E136 – Behavior of Materials in a Vertical Tube FurnaceÂ
- CAN/ULC S114 (CANADA) – Non-Combustibility (weight loss)Â
- EN 13501 (UK/EU) – Combustibility Classification
- EN ISO 1716 (UK/EU) – Heat of combustion (calorific loss)
Flame Spread & Smoke Development
- ASTM E84 – Flame Spread & Smoke DevelopmentÂ
- ASTM E2768 – Flame Spread & Smoke Development
- UL 723 (USA) – Flame Spread & Smoke Development
- CAN/ULC S102 (CANADA) – Flame Spread & Smoke DevelopmentÂ
- EN 13823 (UK/EU) – SBI (single burning item) wall assembly test (cladding, air gap & sheathing)Â
Structural
ASTM E8 – Tensile Strength PropertiesÂ
Environmental
- LEED – Evaluates a building’s environmental performance
- EPD – Life-cycle environmental impact of productsÂ
All Longboard systems are available using our Longboard ECO™ line of sustainable aluminum materials. Longboard ECO™ products are made from minimum 50% recycled aluminum and possess verified life cycle impact assessment (LCIA) and product-specific environmental product declarations (EPD).
Product Components

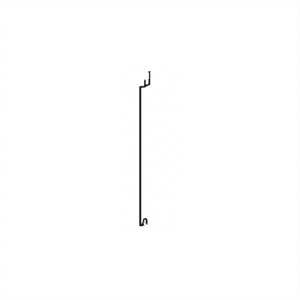

V-Groove Planks
| Dimensions | 12’ * | 24’ ‡ | 12’ Perf * | 24’ Perf ‡ |
|---|---|---|---|---|
| 2½” | 3V.145 | 3VP.145 | ||
| 4” | 4V.145 | 4V.289 | - | - |
| 6” | 6V.145 | 6V.289 | 6VP.145 | 6VP.289 |
Smooth Planks
| Dimensions | 12’ * | 24’ ‡ | 12’ Perf * | 24’ Perf ‡ |
|---|---|---|---|---|
| 6” | 6PSP.145 | 6PSP.289 | 6PSPP.145 | 6PSPP.289 |
Channel Planks
| Dimensions | 12’ * | 24’ ‡ |
|---|---|---|
| 6” | 6CH.145 | 6CH.289 |
Acoustical Soundtex® Scrim
| Dimensions | 12’ * | 24’ ‡ |
|---|---|---|
| 6” V-Groove Plank | 6VPA.145 | 6VPA.289 |
| 6” Smooth Plank | 6PSPPA.145 | 6PSPPA.289 |
Accessories
| Product | Qty | SKU |
|---|---|---|
| Quick Screen Clips | 1750, box | CLIP.N1750 |
| Quick Screen Clips | 100, bag | CLIP.N100 |
| 1/16" U-SHIM | 250, Bag | SHIM.1001 |
| Touch Up Pens (Reach out to confirm color with account manager) | - | TUP |
Component Trims
| Type | Style | Product | Dimension | SKU |
|---|---|---|---|---|
| Starter | Precision | Starter J-Track | (5/8”) - 12’ | 1SJT.145 |
| Starter | Traditional | Starter Strip | (1-7/8”) - 12’ | 2SS.145 |
| J-Track | Precision | Two Piece J-Track | (5/8”) - 12’ | 1X1JT.145 |
| J-Track | Precision | J-Track | (5/8”) - 12’ | 1JT.145 |
| J-Track | Craftsman | J-Track | (7/8”) - 12’ | 1JT23.145 |
| J-Track | Traditional | Two Piece J-Track | (1-3/8”) - 12’ | 1X2JT.145 |
| J-Track | Craftsman | Two Piece J-Track | (7/8”) - 12’ | JT23S.145 |
| Corner | Precision | Outside Corner | (3/16”) - 12’ | 05OC.145 |
| Corner | Traditional | Corner Set | (2”) - 12’ | 2CORS.145 |
| Corner | Craftsman | Inside Corner | (3/4”) - 12’ | 1IC.145 |
| Corner | Craftsman | Outside Corner | (1”) - 12’ | 1OC.145 |
| Corner | Traditional | 3" Smooth | (3") - 24 | 3SCP.289 |
| Corner | Traditional | 3" V-Groove | (3") - 24 | 3SVP.289 |
| Type | Style | Product | Dimension | SKU |
|---|---|---|---|---|
| Reveal | Precision | Flat Reveal | (1/2”) - 12’ | 1FR.145 |
| Reveal | Precision | T&G Flat Reveal | (1/2”) - 24’ | 1TGFR.289 |
| Reveal | Traditional | U-Reveal Set | (1-1/2”) - 12’ | 2URS.145 |
| Reveal | Traditional | Flat Reveal Set | (1-1/2”) - 12’ | 2FRS.145 |
| Reveal | Traditional | T&G U-Reveal | (1 1/2”) - 24’ | 2TGURK.289 |
| Reveal | Craftsman | U-Reveal Set | (3/4”) - 12’ | 1URS.145 |
| Reveal | Craftsman | T&G U-Reveal | (3/4) - 24’ | 1TGURK.289 |
| Termination | Precision | Termination Set | (5/8”) - 12’ | 1TS.145 |
| Termination | Traditional | Termination Set | (1-3/8”) - 12’ | 2TS.145 |
| Termination | Craftsman | Termination Set | (7/8”) - 12’ | TS.145 |
| Compression Joints | Traditional | Compression Joint | (1-3/8”) - 24’ | 2CJ.289 |
