Board & Batten Siding
Board & Batten
Classic Look. Modern Performance.

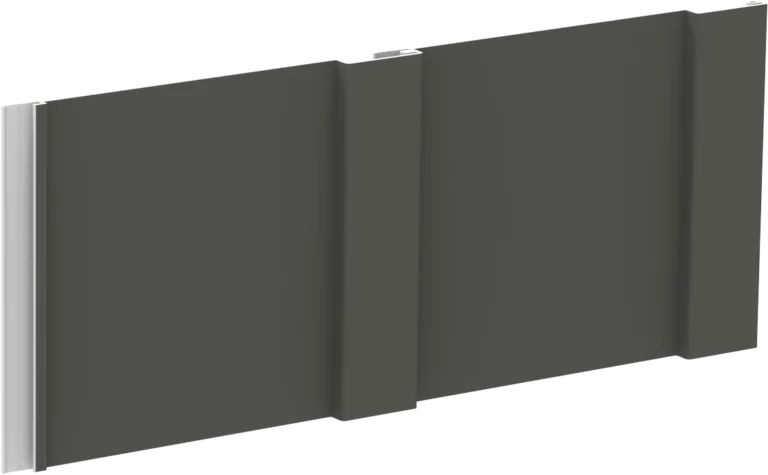

Replicate the traditional look of alternating wide boards and narrow battens, commonly found in residential applications.
This aluminum profile provides the same depth, texture, and shadow lines as real wood but with the added benefits of lightweight durability, weather resistance, and low maintenance.
Planks can only be installed vertically.
Product Components
Profile
| Product | Width | Length | SKU |
|---|---|---|---|
| Board & Batten | 7" | 12' | 7BB.145 |
Accesories
| Product | Qty | SKU |
|---|---|---|
| Quick Screen Clips | 1750, box | CLIP.N1750 |
| Quick Screen Clips | 100, bag | CLIP.N100 |
| Butt- Joint Fastening Kit (6") | 20 Kits per Bag | TGBJKIT |
| Touch Up Pens (Reach out to confirm color with account manager) | - | TUP |
Component Trims
| Type | Style | Product | Dimension | SKU |
|---|---|---|---|---|
| Compression | Traditional | Compression Joint | (1-3/8")-12' | 2CJ.289 |
| Corner | Traditional | Corner Set | (1-2")-12' | 2CORS.145 |
| J Track | Traditional | J Track | (1-3/8")-12' | JT35.145 |
| J Track | Traditional | Two Piece J Track | (1-3/8")-12' | JT23S.145 |
| Reveal | Traditional | Offset Flat Reveal | (2")-12' | 2URS.145 |
| Reveal | Traditional | Flat Reveal Set | (1-2")-12' | 2FRS.145 |
| Starter | Traditional | Starter Strip | (1-7/8")-12' | 2SS.145 |
| Starter | Traditional | Back to Back Starter | (5.5")-12' | 6BTBS.145 |
| Drip Edge | Traditional | Drip Edge | (1-3/8")-12' | 2DE.145 |
Finishes
(Ready to ship within 1 week for orders less than 15k sq.ft)
Solid & Specialty
Ease of install
Simple to follow steps

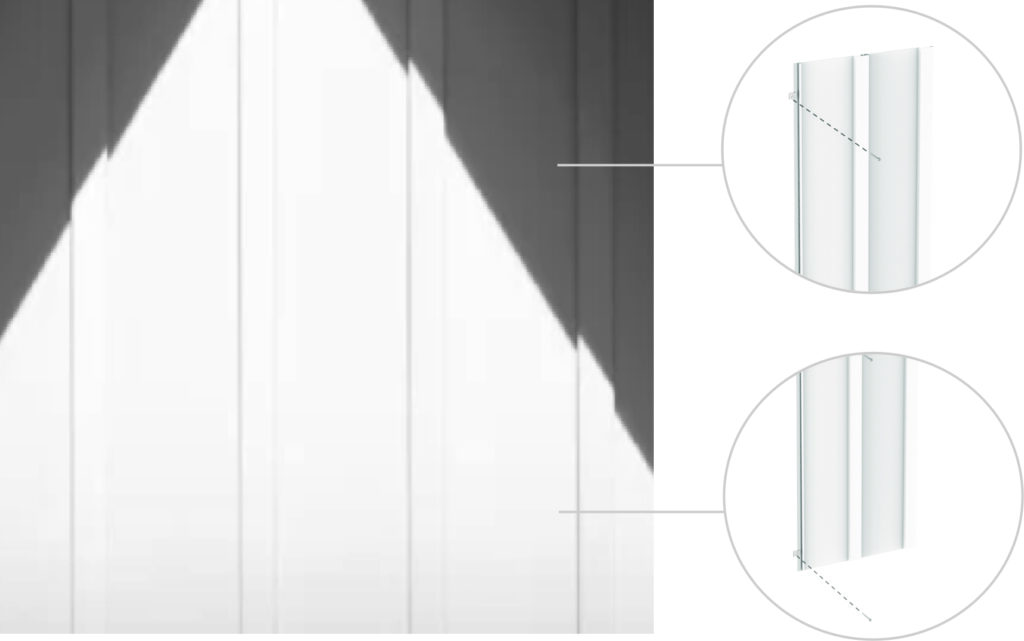

Our thorough and detailed installation guides offer simple to follow steps to increase efficiency and reduce time on the job site.
The sample images are illustrative of some of the steps outlined in our documentation.
Technical Specifications
Spotlight: Techs and Specs
| Code Compliance | Combustability | Flame Spread | Rainscreen |
|---|---|---|---|
| ICC ESR 4182 | ASTM E136 – Behavior of Materials in a Vertical Tube Furnace | ASTM E84 – Flame Spread & Smoke Development | AAMA 509 – Rain screen wall cladding system classification |
| LADBS – Los Angeles | CAN/ULC S114 (CANADA) – Non-Combustibility (weight loss) | ASTM E2768 – Flame Spread & Smoke Development | |
| Department of Building and Safety | EN 13501 (UK/EU) – Combustibility Classification | UL 723 (USA) – Flame Spread & Smoke Development | |
| FLORIDA PRODUCT CODE – FL# 20075 | EN ISO 1716 (UK/EU) – Heat of combustion (calorific loss) | CAN/ULC S102 (CANADA) – Flame Spread & Smoke Development | |
| EN 13823 (UK/EU) – SBI (single burning item) wall assembly test (cladding, air gap & sheathing) |
| Impact | Light Reflectance | Environmental | Structural |
|---|---|---|---|
| TAS 201 – Impact Test. | ASTM E1477 – LRV (light reflectance value) | LEED – Evaluates a building’s environmental performance | ASTM E8 – Tensile Strength Properties. |
| EPD – Life-cycle environmental impact of products |
Documents & Files
Find the files you need
Type
Description
Link
Format
Order a sample
Order a Sample in the Color of your Choice
MOST POPULAR COMPONENT
Board & Batten
7″ Board & Batten
USD $5.00
Achieve the classic aesthetic of alternating wide boards and narrow battens, a hallmark of residential design.
Planks can only be installed vertically.
Description
The traditional look of alternating wide boards and narrow battens. This profile provides the same depth, texture, and shadow lines as real wood but with the added benefits of lightweight durability, weather resistance, and low maintenance.
Planks can only be installed vertically.
Additional information
| Finish | Shale |
|---|---|
| Size | 6" |
