Tongue & Groove Planks - Textured
Exterior Systems
Tongue & Groove Planks - Textured
A textured cladding system is a versatile architectural solution that enhances the visual appeal and functionality of a building’s exterior. These new profiles were designed to provide a range of surface textures and patterns, adding depth and character to your design.
Textured cladding serves both aesthetic and practical purposes, offering a tactile and visually engaging facade while also providing protection against environmental elements such as rain, wind, and UV. Both profiles are available in 12’ and 24’ft lengths, providing greater adaptability to a range of architectural designs. This system installs just as quickly and easily as our pre-existing systems. The system was designed to be compatible with existing components from other systems, reducing waste and enhancing cost-efficiency.
This newly launched product category includes two distinct textured tongue and groove plank designs namely Bevel and Castellation.
Finishes
Most Popular Finishes
(Ready to ship within 1 week for orders less than 15k sq.ft)
Woodgrains
Longboard's woodgrain finishes have a slight texture with a matte sheen.
Solid & Specialty
Onyx Black
OBL
Textured Matte
Solid
Shale
SHA
Textured Matte
Solid
Textured Matte
Solid
Smooth Satin
Solid
Dark Brown
DBR
Smooth Satin
Solid
Slate Grey
SGR
Smooth Satin
Solid
Venus
VEN
Smooth Satin
Metallic
Ultra White
UWH
Smooth Satin
Solid
Bone White
BWH
Smooth Satin
Solid
Moonstone
MOO
Smooth Satin
Metallic
Additional Finishes
(Contact a Sales Rep for Lead Times)
Woodgrains
Longboard's woodgrain finishes have a slight texture with a matte sheen.
Black Oak
BKO
Dark Olive
DOL
Light Olive
LOL
Light Oak
LOK
Blonde Oak
BOK
Rock Elm
REM
Driftwood
DWO
Grey Hemlock
GHL
Solid & Specialty
Speckle
Brownstone
BST
Textured Matte
Speckle
Baked Clay
BCL
Textured Matte
Speckle
Burnt Sienna
BSN
Textured Matte
Speckle
Biscotti
BIS
Textured Matte
Speckle
Relicstone
RST
Textured Matte
Speckle
Limestone
LST
Textured Matte
Speckle
Bedrock
BRK
Textured Matte
Speckle
Pebble
PEB
Textured Matte
Speckle
Alabaster
ALB
Textured Matte
Speckle
Textured Matte
Speckle
Naturally Aged Metals
Liberty
LIB
Textured Matte
Naturally Aged Metals
Empire
EMP
Textured Matte
Naturally Aged Metals
Brooklyn
BRO
Smooth Glossy
Naturally Aged Metals
Eiffel
EIF
Textured Matte
Naturally Aged Metals
Golden Gate
GGA
Textured Matte
Naturally Aged Metals
Your screen, and our pictures do not accurately reflect aspects of our finishes – textures, sheen, woodgrain hues, etc. Always order a physical sample before purchase!
Contact us to confirm lead times for orders greater than 15k sq.ft in the Most Popular Finishes category.
Longboard Finish Classification
Type: Woodgrain / Solid / Metallic /
Speckle / Naturally Aged Metal
Surface: Smooth / Textured
Sheen: Matte / Satin / Glossy
Performance: AAMA 2604 / AAMA 2605
Finish Warranty: 15 Year / 20 Year
Longboard® is Innovative Sustainable Quality Visually Stunning
Ease of Install
Our thorough and detailed installation guides offer simple to follow steps to increase efficiency and reduce time on the job site.
The sample images below are illustrative of some of the steps outlined in our documentation.
Perforation
These products meet the same quality and environmental benchmarks of our other products, including being VOC free, LBC red list free, 100% recyclable, and offering up to LR.73 light reflectance.
Explore the possibilities with the freedom to create a visually stunning space with a product that also serves a practical purpose.
Technical Specifications
Code Compliance
- ICC ESR 4182
- LADBS – Los Angeles Department of Building and Safety
- FLORIDA PRODUCT CODE – FL# 20075
Combustibility
- ASTM E136 – Behavior of Materials in a Vertical Tube Furnace
- CAN/ULC S114 (CANADA) – Non-Combustibility (weight loss)
- EN 13501 (UK/EU) – Combustibility Classification
- EN ISO 1716 (UK/EU) – Heat of combustion (calorific loss)
Flame Spread & Smoke Development
- ASTM E84 – Flame Spread & Smoke Development
- ASTM E2768 – Flame Spread & Smoke Development
- UL 723 (USA) – Flame Spread & Smoke Development
- CAN/ULC S102 (CANADA) – Flame Spread & Smoke Development
- EN 13823 (UK/EU) – SBI (single burning item) wall assembly test (cladding, air gap & sheathing)
Rainscreen
- AAMA 509 – Rain screen wall cladding system classification
Wind Load
- TAS 202 – Wind load – uniform static pressure
- TAS 203 – Wind load – cyclic pressure
Impact
- TAS 201 – Impact Test
Light Reflectance
- ASTM E1477 – LRV (light reflectance value)
Structural
ASTM E8 – Tensile Strength Properties
Environmental
- LEED – Evaluates a building’s environmental performance
- EPD – Life-cycle environmental impact of products
All Longboard systems are available using our Longboard ECO™ line of sustainable aluminum materials. Longboard ECO™ products are made from minimum 50% recycled aluminum and possess verified life cycle impact assessment (LCIA) and product-specific environmental product declarations (EPD).
Product Components
Bevel Planks
| Dimensions | 12’ * | 24’ ‡ |
|---|---|---|
| 6” Single | 6SB.145 | 6SB.289 |
| 6" Triple | 6TB.145 | 6TB.289 |
Castellation Planks
| Dimensions | 12’ * | 24’ ‡ |
|---|---|---|
| 4" | 4CA.145 | 4CA.289 |
| 8" | 8CA.145 | 8CA.289 |
Accessories
| Product | Qty | SKU |
|---|---|---|
| Quick Screen Clips | 1750, box | CLIP.N1750 |
| Quick Screen Clips | 100, bag | CLIP.N100 |
| Touch Up Pens (Reach out to confirm color with account manager) | - | TUP |
6″ Single Bevel Woodgrain Finish
6″ Single Bevel
Solid Color Finish
6″ Triple Bevel
* Only available in
Solid Color Finishes
4″ Castellation Planks
with Link & Lock™
Battens in Solid
& Woodgrain Finishes
8″ Castellation Planks
with Link & Lock™
Battens in Solid
& Woodgrain Finishes
4″ Castellation
* Only available
in Solid Color Finishes
8″ Castellation
* Only available
in Solid Color Finishes
Component Trims
| Type | Style | Product | Dimension | SKU |
|---|---|---|---|---|
| Starter | Precision | Starter J-Track | (5/8”) - 12’ | 1SJT.145 |
| Starter | Traditional | Starter Strip | (1-7/8”) - 12’ | 2SS.145 |
| J-Track | Precision | Two Piece J-Track | (5/8”) - 12’ | 1X1JT.145 |
| J-Track | Precision | J-Track | (5/8”) - 12’ | 1JT.145 |
| J-Track | Craftsman | J-Track | (7/8”) - 12’ | 1JT23.145 |
| J-Track | Traditional | Two Piece J-Track | (1-3/8”) - 12’ | 1X2JT.145 |
| J-Track | Craftsman | Two Piece J-Track | (7/8”) - 12’ | JT23S.145 |
| Corner | Precision | Outside Corner | (3/16”) - 12’ | 05OC.145 |
| Corner | Traditional | Corner Set | (2”) - 12’ | 2CORS.145 |
| Corner | Craftsman | Inside Corner | (3/4”) - 12’ | 1IC.145 |
| Corner | Craftsman | Outside Corner | (1”) - 12’ | 1OC.145 |

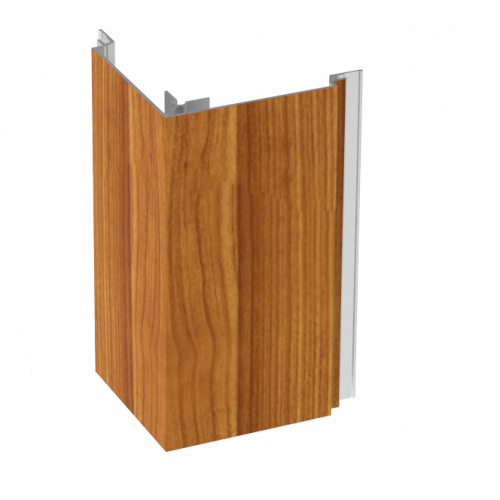

| Corner | Traditional | 3" Smooth | (3") - 24 | 3SCP.289 |

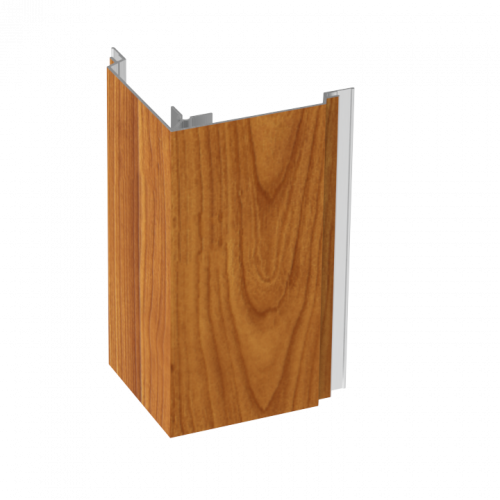

| Corner | Traditional | 3" V-Groove | (3") - 24 | 3SVP.289 |
| Type | Style | Product | Dimension | SKU |
|---|---|---|---|---|
| Reveal | Precision | Flat Reveal | (1/2”) - 12’ | 1FR.145 |
| Reveal | Precision | T&G Flat Reveal | (1/2”) - 24’ | 1TGFR.289 |
| Reveal | Traditional | U-Reveal Set | (1-1/2”) - 12’ | 2URS.145 |
| Reveal | Traditional | Flat Reveal Set | (1-1/2”) - 12’ | 2FRS.145 |
| Reveal | Traditional | T&G U-Reveal | (1 1/2”) - 24’ | 2TGURK.289 |
| Reveal | Craftsman | U-Reveal Set | (3/4”) - 12’ | 1URS.145 |
| Reveal | Craftsman | T&G U-Reveal | (3/4) - 24’ | 1TGURK.289 |
| Termination | Precision | Termination Set | (5/8”) - 12’ | 1TS.145 |
| Termination | Traditional | Termination Set | (1-3/8”) - 12’ | 2TS.145 |
| Termination | Craftsman | Termination Set | (7/8”) - 12’ | TS.145 |
| Compression Joints | Traditional | Compression Joint | (1-3/8”) - 24’ | 2CJ.289 |
