Lap Siding
LAP SIDING
Classic Look. Modern Performance.
Experience the timeless charm of traditional lap siding, reimagined with the strength and sophistication of architectural aluminum.
Our lap siding profile is precision-engineered from 6063-T5 aluminum with a 1.5mm thickness, delivering unmatched durability and structural integrity. Built to withstand the elements, it resists denting, warping, and fading, ensuring your exterior remains beautiful for years to come, with zero maintenance.
Combine the warmth of classic aesthetics with the confidence of modern materials for a finish that’s both enduring and elegant.
Product components
Profile
| Product | Width | Length | SKU |
|---|---|---|---|
| Lap Siding | 6" | 12' | 6L.145 |
Accesories
| Product | Qty | SKU |
|---|---|---|
| Quick Screen Clips | 1750, box | CLIP.N1750 |
| Quick Screen Clips | 100, bag | CLIP.N100 |
| Butt- Joint Fastening Kit (6") | 20 Kits per Bag | TGBJKIT |
| Touch Up Pens (Reach out to confirm color with account manager) | - | TUP |
Component Trims
| Type | Style | Product | Dimension | SKU |
|---|---|---|---|---|
| Compression | Traditional | Compression Joint | (1-3/8")-12' | 2CJ.289 |
| Corner | Traditional | Corner Set | (1"-2")-12' | 2CORS.145 |
| J Track | Traditional | J Track | (1-3/8")-12' | JT35.145 |
| J Track | Traditional | Two Piece J Track | (1-3/8")-12' | JT23S.145 |
| Reveal | Traditional | Flat Reveal Set | (1-1/2")-12' | 2FRS.145 |
| Reveal | Traditional | U-Reveal Set | (1-1/2")-12' | 2URS.145 |
| Starter | Traditional | Starter Strip | (1-7/8")-12' | 2SS.145 |
Finishes
(Ready to ship within 1 week for orders less than 15k sq.ft)
Solid & Specialty

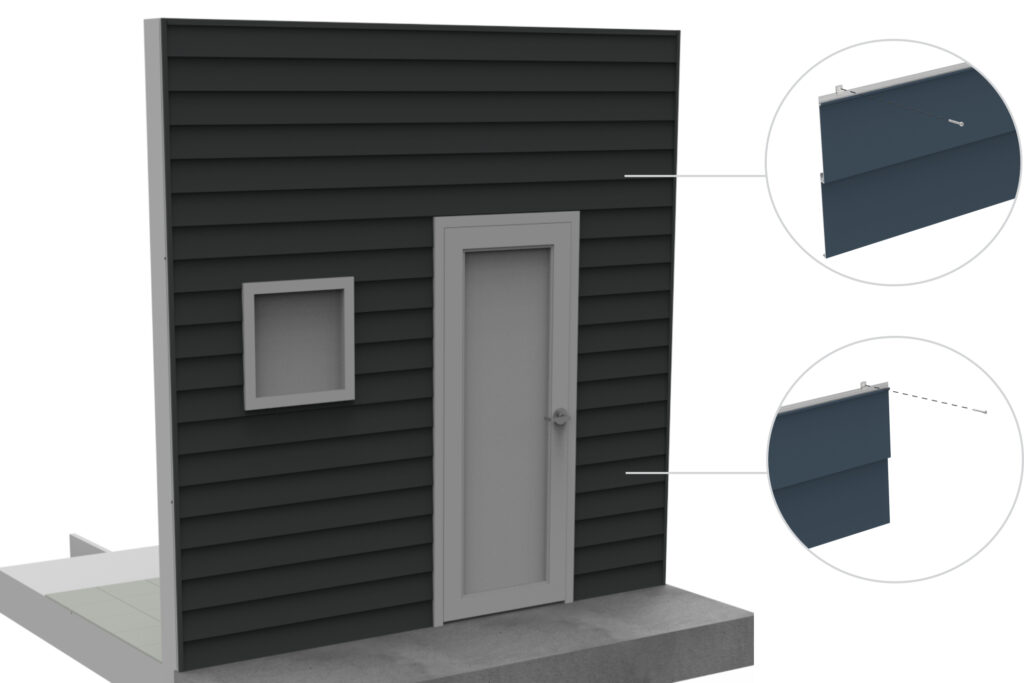

Ease of install
Simple to follow steps
Our thorough and detailed installation guides offer simple to follow steps to increase efficiency and reduce time on the job site.
The sample images are illustrative of some of the steps outlined in our documentation.
Perforation
Ventilation & Accoustics
These products meet the same quality and environmental benchmarks of our other products, including being VOC free, LBC red list free, 100% recyclable, and offering up to LR.73 light reflectance.
Explore the possibilities with the freedom to create a visually stunning space with a product that also serves a practical purpose.
Technical Specifications
Spotlight: Techs and Specs
| Code Compliance | Combustability | Flame Spread | Rainscreen |
|---|---|---|---|
| ICC ESR 4182 | ASTM E136 – Behavior of Materials in a Vertical Tube Furnace | ASTM E84 – Flame Spread & Smoke Development | AAMA 509 – Rain screen wall cladding system classification |
| LADBS – Los Angeles | CAN/ULC S114 (CANADA) – Non-Combustibility (weight loss) | ASTM E2768 – Flame Spread & Smoke Development | |
| Department of Building and Safety | EN 13501 (UK/EU) – Combustibility Classification | UL 723 (USA) – Flame Spread & Smoke Development | |
| FLORIDA PRODUCT CODE – FL# 20075 | EN ISO 1716 (UK/EU) – Heat of combustion (calorific loss) | CAN/ULC S102 (CANADA) – Flame Spread & Smoke Development | |
| EN 13823 (UK/EU) – SBI (single burning item) wall assembly test (cladding, air gap & sheathing) |
| Impact | Light Reflectance | Environmental | Structural |
|---|---|---|---|
| TAS 201 – Impact Test. | ASTM E1477 – LRV (light reflectance value) | LEED – Evaluates a building’s environmental performance | ASTM E8 – Tensile Strength Properties. |
| EPD – Life-cycle environmental impact of products |
Documents & Files
Find the files you need
Type
Description
Link
Format
Order a sample
Order a Sample in the Color of your Choice
MOST POPULAR COMPONENT

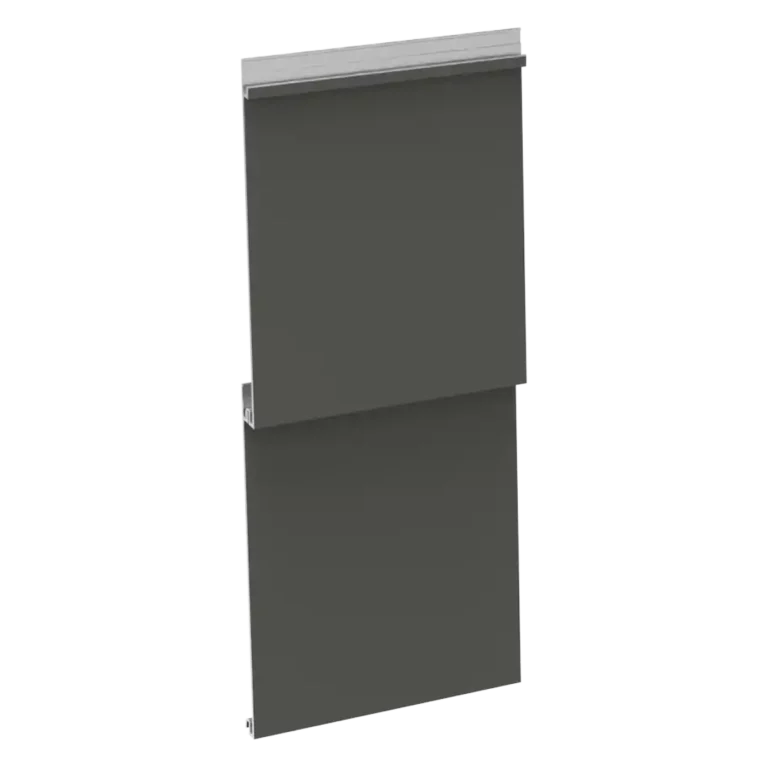

Lap Siding
6″ Lap Siding
USD $5.00
Lap siding, timeless aesthetic of traditional lap siding, engineered for long-lasting durability, this profile features a 1.5mm thickness and is crafted from premium 6063-T5 aluminum, offering exceptional resistance to denting, warping, and fading.
Description
Timeless aesthetic of traditional lap siding, engineered for long-lasting durability. This profile features a 1.5mm thickness and is crafted from premium 6063-T5 aluminum, offering exceptional resistance to denting, warping, and fading.
Additional information
| Finish | Shale |
|---|---|
| Size | 6" |
