Dauntless Suspended Ceilings

Our Dauntless system offers a unique open joint appearance while at the same time being incredibly easy to install and service. The clip and rail system we have developed makes install a snap.

Dauntless ceiling systems are built for adaptability and creative install. Design either a linear look using our Align documentation or Curve for geometric variations.

equinox_1131 w georgia LARGE-7581 copy

Dauntless Align

Dauntless_Curve

Dauntless Curve

Finishes

Woodgrains

*only available on interior products.

Solid Colors

Specialty

Naturally Aged Metals

Longboard® is Innovative Sustainable Quality Visually Stunning

Ease of Install

Our thorough and detailed installation guides offer simple to follow steps to increase efficiency and reduce time on the job site.

The sample images below are illustrative of some of the steps outlined in our documentation.

Acoustics

Like all open cell ceiling systems, our Dauntless system allows for the use of acoustic batts for improved sound performance.

Explore the possibilities with the freedom to create a visually stunning space with a product that also serves a practical purpose.

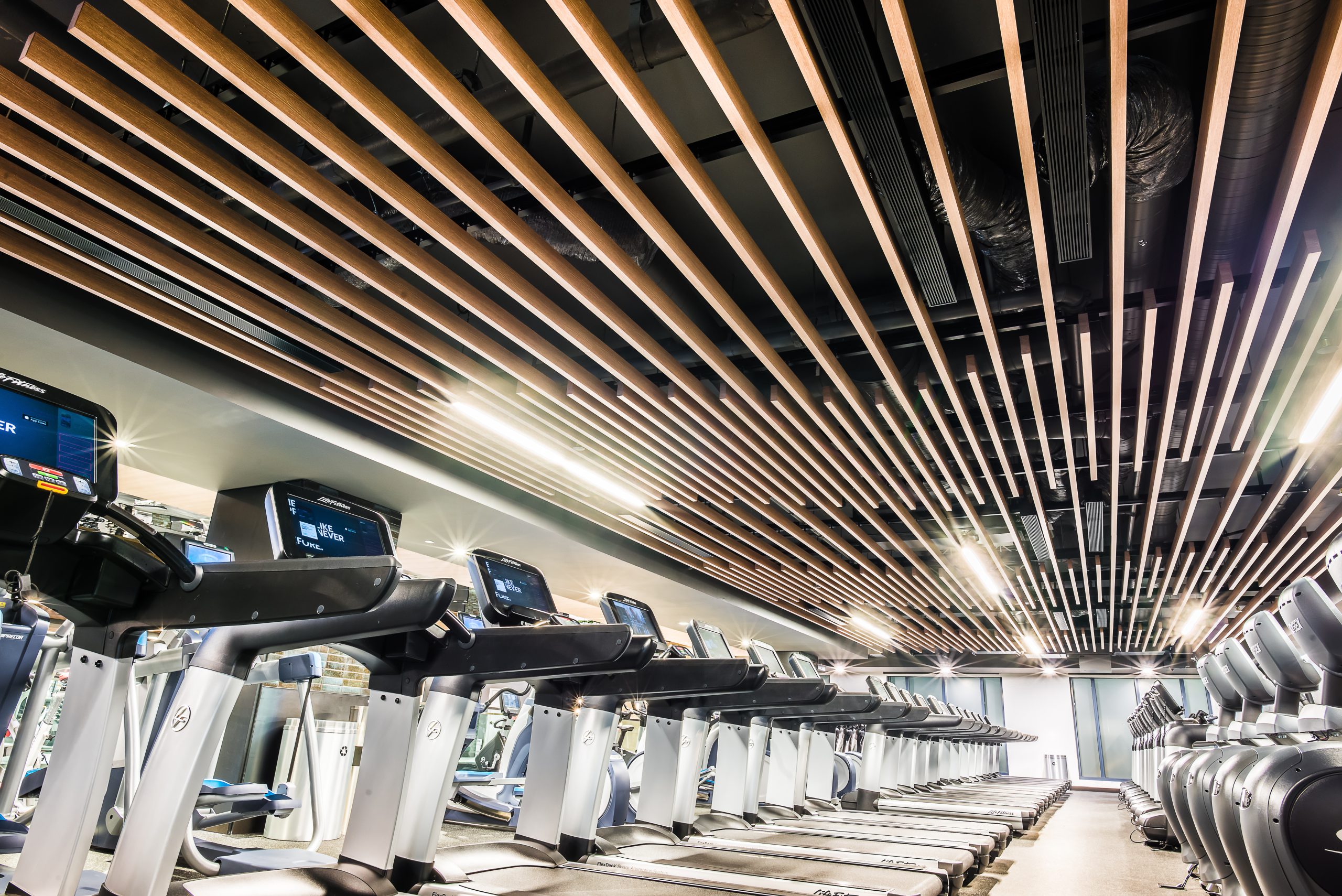

equinox_1131 w georgia LARGE-7578

Technical Specifications

Code Compliance

  • ICC ESR 4184
  • LADBS – Los Angeles Department of Building and Safety

Combustibility

  • ASTM E136 – Behavior of Materials in a Vertical Tube Furnace
  • CAN/ULC S114 (CANADA) – Non-Combustibility (weight loss)
  • EN 13501 (UK/EU) – Combustibility Classification
  • EN ISO 1716 (UK/EU) – Heat of combustion (calorific loss)

Flame Spread & Smoke Development

  • ASTM E84 – Flame Spread & Smoke Development
  • ASTM E2768 – Flame Spread & Smoke Development
  • UL 723 (USA) – Flame Spread & Smoke Development
  • CAN/ULC S102 (CANADA) – Flame Spread & Smoke Development

Light Reflectance

  • ASTM E1477 – LRV (light reflectance value)

Environmental

  • LEED – Evaluates a building’s environmental performance
  • EPD – Life-cycle environmental impact of products

All Longboard systems are available using our Longboard ECO™ line of sustainable aluminum materials. Longboard ECO™ products are made from minimum 50% recycled aluminum and possess verified life cycle impact assessment (LCIA) and product-specific environmental product declarations (EPD).

Product Components

Beams

DimensionsProduct24’End Caps (20/box)
1-5/8” x 4”Beam2X4CB.2892BEC.4
1-5/8” x 6”Beam2X6CB.2892BEC.6

Hanger Bracket Mounting System

ProductKindQtySKU
Side Rail24' Carrier Rail12CBSR.289
Beam Spline Connection TopAccessory1BSCT.6
2” Hanger BracketBracket1CBHB.2
4” Hanger BracketBracket1CBHB.4
6” Hanger BracketBracket1CBHB.6
8” Hanger BracketBracket1CBHB.8
10” Hanger BracketBracket1CBHB.10
12” Hanger BracketBracket1CBHB.12

Clip Mounting System

ProductKindQtySKU
Single Rail*24' Carrier Rail1CBR.289
Double Rail*24' Carrier Rail1CBDR.289
1-1/2” Single Hanger ClipClip20, boxHCS.2
3” Hanger ClipClip20, boxHC.3
Eye Bolt with T-NutsAttachment20, boxCBEB.N20

*Includes 7 Eye-Bolts with T-Nuts

4" Beam

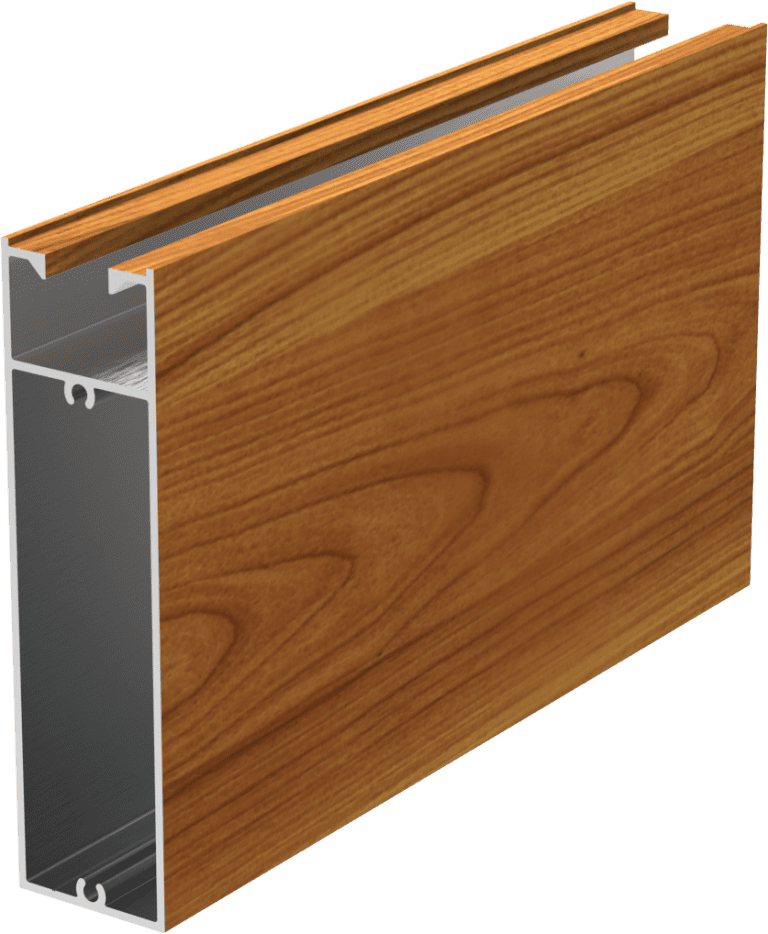

6" Beam

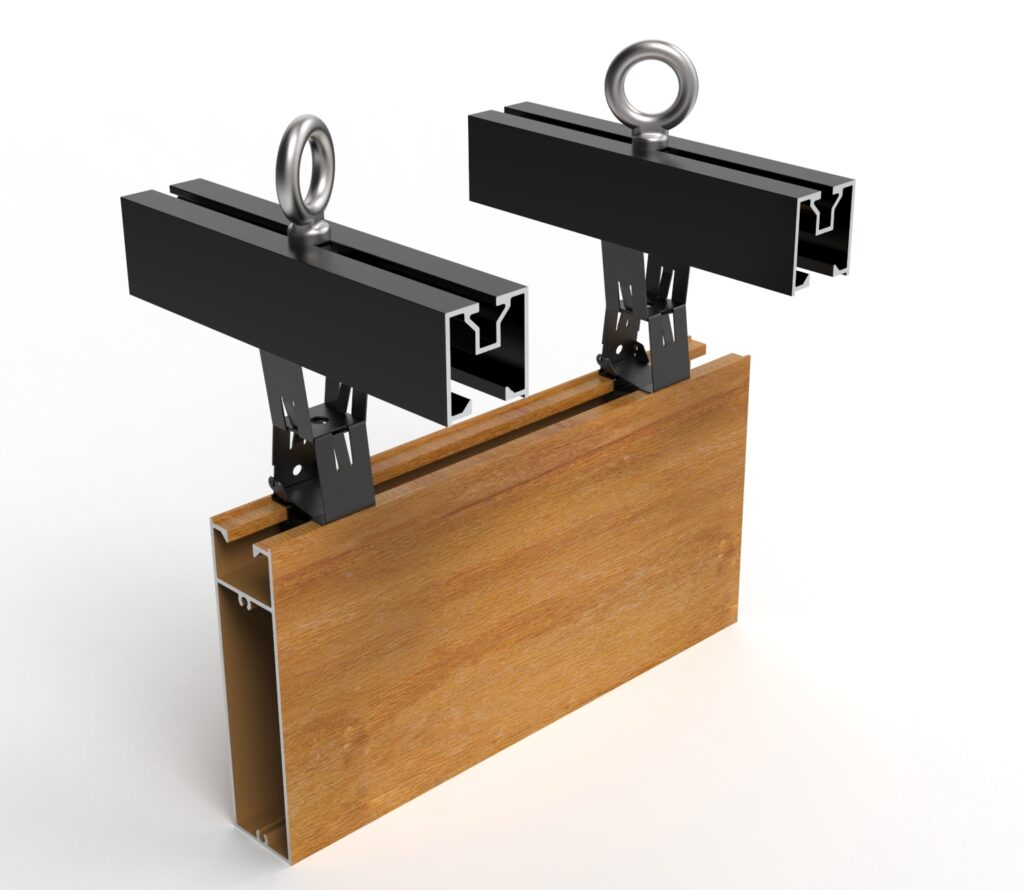

Clip Assembly
Hanger Bracket Assembly
Hanger Bracket
Hanger Clip
Single Carrier Rail
Double Carrier Rail
Side Carrier Rail
Beam Spline

Gallery
