Panelboard™ System for Cladding

Regular cladding installers can quickly learn how to use our smooth plank products to create a Panelboard™ installation. The system is straight-forward in it’s application and cutting panels can be done on-site and can be finished in a variety of colors with 15 and 20 year warranty options available.

All the same tongue & groove mounting accessories and component trims can be used in a Panelboard™ install. Using a combination of smooth planks and component trims to create the impression of a solid large format panel. By using planks and components gives the designer and installer superior flexibility and ease of install compared to other large format panel systems.

Why choose Panelboard™ instead of other panel products?

Product Description

High-grade extruded aluminum, hollow backed with a base metal thickness of 1.77mm. Panel sizes from 1ft to 24 ft.

Durability

High impact strength. Due to their light weight reduce structural requirements and subsequent costs.

End of Use Recyclability

100% recyclable, the extrusion doesn't contain any plastic elements.

Maintenance

Easy to maintain and cost effective field repairs. Dirt and debris can be easily rinsed and washed off with a mild detergent depending on frequency of build-up. No caulking or glue is required for the product.

Environmental Concern

Longboard can contain recycled aluminum. Production of aluminum billets sourced by Longboard uses hydro-electric power.

Rain-Screen

BV/D (Rear ventilated rain-screen), no need for caulking. Mechanical seals are used such as metal flashing and metal furring strips which are long-lasting.

Flatness

Extruded aluminum does not show oil canning and will demonstrate extraordinary flatness and rigidity when installed according to the manufacture's instructions.

Ease of Installation

Regular cladding installers can quickly learn Panelboard™ installation techniques. The system is straight-forward in it's application and cutting panels can be done on-site. Typically one installer can apply 100 SF of coverage per day.

Finishes

Most Popular Finishes

(Ready to ship within 1 week for orders less than 15k sq.ft)

Woodgrains

Longboard's woodgrain finishes have a slight texture with a matte sheen.

Solid & Specialty

Textured Matte
Solid

Textured Matte
Solid

Textured Matte
Solid

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Metallic

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Metallic

Smooth Satin
Solid

Additional Finishes

(Contact a Sales Rep for Lead Times)

Woodgrains

Longboard's woodgrain finishes have a slight texture with a matte sheen.

Solid & Specialty

Smooth Satin
Metallic

Black*

BLA

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Metallic

* Set to Retire Soon

Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Textured Matte
Speckle

Naturally Aged Metals

Textured Matte
Naturally Aged Metals

Textured Matte
Naturally Aged Metals

Smooth Glossy
Naturally Aged Metals

Textured Matte
Naturally Aged Metals

Textured Matte
Naturally Aged Metals

Your screen, and our pictures do not accurately reflect aspects of our finishes – textures, sheen, woodgrain hues, etc. Always order a physical sample before purchase!

Contact us to confirm lead times for orders greater than 15k sq.ft in the Most Popular Finishes category.

Longboard Finish Classification

Type: Woodgrain / Solid / Metallic /
Speckle / Naturally Aged Metal
Surface: Smooth / Textured
Sheen: Matte / Satin / Glossy
Performance: AAMA 2604 / AAMA 2605
Finish Warranty: 15 Year / 20 Year

Longboard® is Innovative Sustainable Quality Visually Stunning

Ease of Install

Our thorough and detailed installation guides offer simple to follow steps to increase efficiency and reduce time on the job site.

The sample images below are illustrative of some of the steps outlined in our documentation.

Perforation

We offer perforation options to offer designers freedom in achieving their desired look while also delivering practical uses.

These products meet the same quality and environmental benchmarks of our other products, including being VOC free, LBC red list free, 100% recyclable, and offering up to LR.73 light reflectance.

Technical Specifications

Code Compliance

  • ICC ESR 4182
  • LADBS – Los Angeles Department of Building and Safety
  • FLORIDA PRODUCT CODE – FL# 20075

Combustibility

  • ASTM E136 – Behavior of Materials in a Vertical Tube Furnace
  • CAN/ULC S114 (CANADA) – Non-Combustibility (weight loss)
  • EN 13501 (UK/EU) – Combustibility Classification
  • EN ISO 1716 (UK/EU) – Heat of combustion (calorific loss)

Flame Spread & Smoke Development

  • ASTM E84 – Flame Spread & Smoke Development
  • ASTM E2768 – Flame Spread & Smoke Development
  • UL 723 (USA) – Flame Spread & Smoke Development
  • CAN/ULC S102 (CANADA) – Flame Spread & Smoke Development
  • EN 13823 (UK/EU) – SBI (single burning item) wall assembly test (cladding, air gap & sheathing)

Rainscreen

  • AAMA 509 – Rain screen wall cladding system classification

Wind Load

  • TAS 202 – Wind load – uniform static pressure
  • TAS 203 – Wind load – cyclic pressure

Impact

  • TAS 201 – Impact Test

Light Reflectance

  • ASTM E1477 – LRV (light reflectance value)

Structural

  • ASTM E8 – Tensile Strength Properties

Environmental

  • LEED – Evaluates a building’s environmental performance
  • EPD – Life-cycle environmental impact of products

All Longboard systems are available using our Longboard ECO™ line of sustainable aluminum materials. Longboard ECO™ products are made from minimum 50% recycled aluminum and possess verified life cycle impact assessment (LCIA) and product-specific environmental product declarations (EPD).

Product Components

V-Groove Planks

Dimensions12’ *24’ ‡12’ Perf *24’ Perf ‡
2½”3V.1453VP.145
4”4V.1454V.289--
6”6V.1456V.2896VP.1456VP.289

Smooth Planks

Dimensions12’ *24’ ‡12’ Perf *24’ Perf ‡
6”6PSP.1456PSP.2896PSPP.1456PSPP.289

Channel Planks

Dimensions12’ *24’ ‡
6”6CH.1456CH.289

Accessories

ProductQtySKU
Quick Screen Clips1750, boxCLIP.N1750
Quick Screen Clips100, bagCLIP.N100
Touch Up Pens
(Reach out to confirm color with account manager)
-TUP
2½" V-Groove
2½" V-Groove
4" V-Groove
4" V-Groove
6" V-Groove
6" V-Groove
6" Channel
6" Channel
6" Smooth Plank
6" Smooth Plank
2½" Perforated V-Groove
2½" Perforated V-Groove
6" Perforated V-Groove
6" Perforated V-Groove
Quick Screen Clip
Touch Up Pens

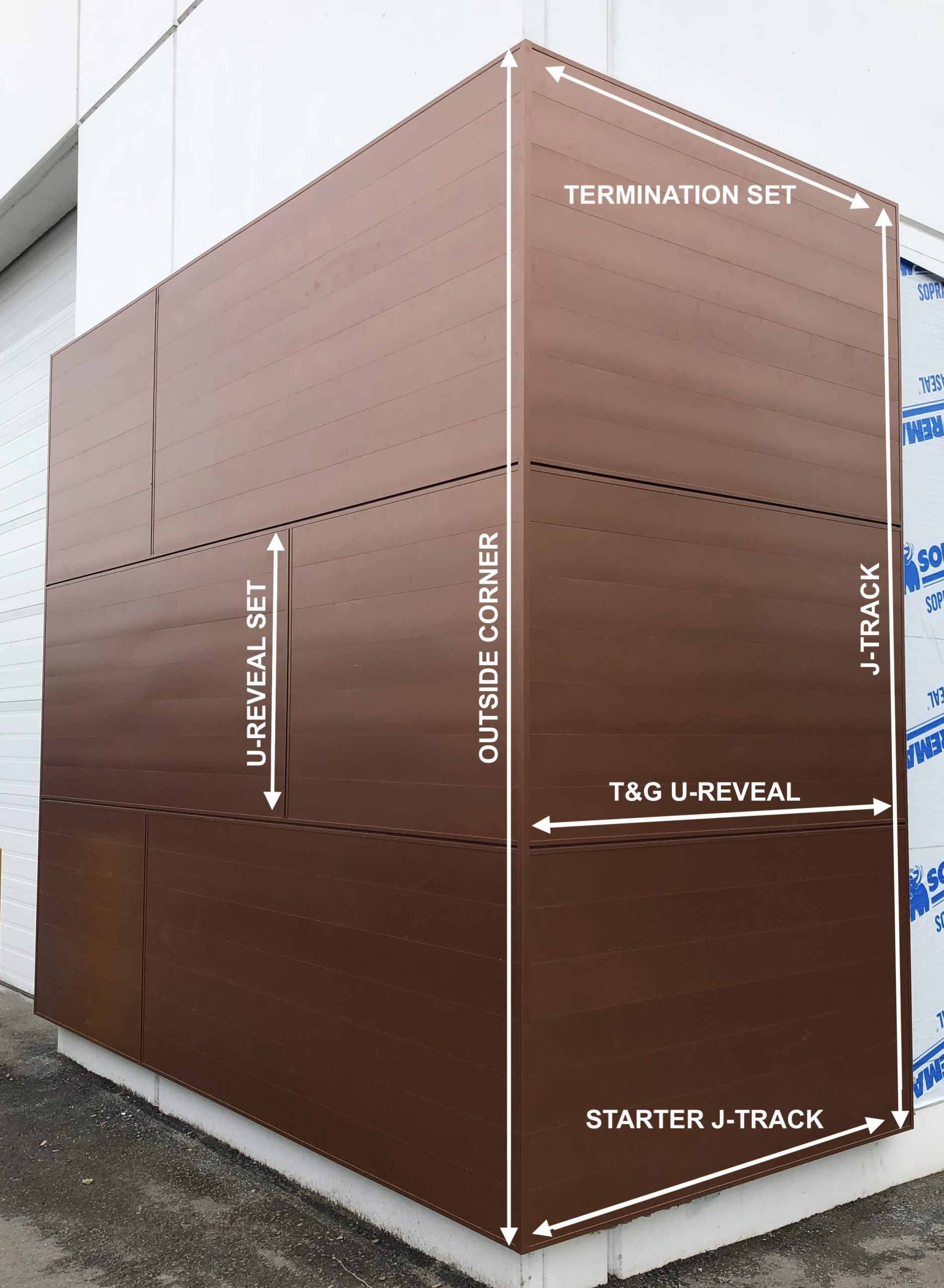

Component Trims

TypeStyleProductDimensionSKU
StarterPrecisionStarter J-Track(5/8”) - 12’1SJT.145
StarterTraditionalStarter Strip(1-7/8”) - 12’2SS.145
J-TrackPrecisionTwo Piece J-Track(5/8”) - 12’1X1JT.145
J-TrackPrecisionJ-Track(5/8”) - 12’1JT.145
J-TrackCraftsmanJ-Track(7/8”) - 12’1JT23.145
J-TrackTraditionalTwo Piece J-Track(1-3/8”) - 12’1X2JT.145
J-TrackCraftsmanTwo Piece J-Track(7/8”) - 12’JT23S.145
CornerPrecisionOutside Corner(3/16”) - 12’05OC.145
CornerTraditionalCorner Set(2”) - 12’2CORS.145
CornerCraftsmanInside Corner(3/4”) - 12’1IC.145
CornerCraftsmanOutside Corner(1”) - 12’1OC.145
CornerTraditional3" Smooth(3") - 243SCP.289
CornerTraditional3" V-Groove(3") - 243SVP.289



TypeStyleProductDimensionSKU
RevealPrecisionFlat Reveal(1/2”) - 12’1FR.145
RevealPrecisionT&G Flat Reveal(1/2”) - 24’1TGFR.289
RevealTraditionalU-Reveal Set(1-1/2”) - 12’2URS.145
RevealTraditionalFlat Reveal Set(1-1/2”) - 12’ 2FRS.145
RevealTraditionalT&G U-Reveal(1 1/2”) - 24’2TGURK.289
RevealCraftsmanU-Reveal Set(3/4”) - 12’1URS.145
RevealCraftsmanT&G U-Reveal (3/4) - 24’1TGURK.289
TerminationPrecisionTermination Set (5/8”) - 12’1TS.145
TerminationTraditionalTermination Set (1-3/8”) - 12’2TS.145
TerminationCraftsmanTermination Set (7/8”) - 12’TS.145
Compression
Joints
TraditionalCompression Joint(1-3/8”) - 24’2CJ.289
Precision Starter J-Track
Traditional Starter Strip
Traditional Starter Strip
Traditional Back-to-Back Starter Strip
Precision 2 Piece J-Track
Precision J-Track
Craftsman 2 Piece J-Track
Traditional 2 Piece J-Track
Precision Outside Corner
Craftsman Inside Corner
Craftsman Outside Corner
Traditional Corner Set
Precision Flat Reveal
Precision T&G Flat Reveal
Craftsman T&G U-Reveal
Craftsman U-Reveal Set
Traditional U-Reveal Set
Traditional Flat Reveal Set
Traditional T&G U-Reveal
Traditional Offset Flat Reveal Set, J-Track Base
Traditional Offset Flat Reveal Set, Termination Base
Precision Termination Set
Craftsman Termination Set
Traditional Termination Set
Traditional Compression Joint

Gallery

Speak with a trusted advisor

to discuss your project goals and design needs

Panelboard™ System for Soffit

Regular cladding installers can quickly learn Panelboard™ installation techniques. The system is straight-forward in it’s application and cutting panels can be done on-site. This system can be finished in a variety of colors with 15 and 20 year warranty options available. Colors can be standard solids, metallics and terra cotta finishes. Easy to maintain and cost effective field repairs. Dirt and debris can be easily rinsed and washed off with a mild detergent depending on frequency of build-up. No caulking or glue is required for the product. Longboard can contain recycled aluminum. Production of aluminum billets sourced by Longboard uses hydro-electric power.  Extruded aluminum does no oil can and will demonstrate extraordinary flatness and rigidity when installed according to manufacture’s instructions.

Why choose Panelboard™ instead of other panel products?

Product Description

High-grade extruded aluminum, hollow backed with a base metal thickness of 1.77mm. Panel sizes from 1ft to 24 ft.

Durability

High impact strength. Due to their light weight reduce structural requirements and subsequent costs.

End of Use Recyclability

100% recyclable, the extrusion doesn't contact any plastic elements.

Maintenance

Easy to maintain and cost effective field repairs. Dirt and debris can be easily rinsed and washed off with a mild detergent depending on frequency of build-up. No caulking or glue is required for the product.

Environmental Concern

Longboard can contain recycled aluminum. Production of aluminum billets sourced by Longboard uses hydro-electric power.

Rain-Screen

BV/D (Rear ventilated rain-screen), no need for caulking. Mechanical seals are used such as metal flashing and metal furring strips which are long-lasting.

Flatness

Extruded aluminum does no oil can and will demonstrate extraordinary flatness and rigidity when installed according to manufacture's instructions.

Ease of Installation

Regular cladding installers can quickly learn Panelboard™ installation techniques. The system is straight-forward in it's application and cutting panels can be done on-site. Typically one installer can apply 100 SF of coverage per day.

Finishes

Most Popular Finishes

(Ready to ship within 1 week for orders less than 15k sq.ft)

Woodgrains

Longboard's woodgrain finishes have a slight texture with a matte sheen.

Solid & Specialty

Textured Matte
Solid

Textured Matte
Solid

Textured Matte
Solid

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Solid

Smooth Satin
Metallic
